A finite ladder is constructed by connecting several sections of 2 μF, 4 μF capacitor combinations as shown in figure. It is terminated by a capacitor of capacitance C. What value should be chosen for C, such that the equivalent capacitance of the ladder between the points A and B becomes independent of the number of sections in between?
Given,
The capacitance C should be equal to the equivalent capacitance.
Since the arrangement is an infinite series, addition or deletion of the repetiting components which is the 2 μF, 4 μF capacitor combinations) would not make any effect on the overall capacitance.

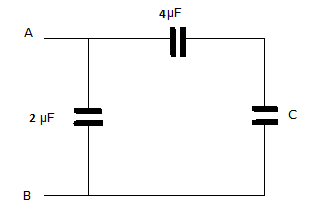

Hence, for simplification, we represent it as shown below,
In the figure , C in μF) represents the capacitance that gives the same value for equivalent capacitance to the infinite ladder even after it is terminated at the end. So that C and 4 μF are in series, and these are parallel to 2μF.
In this case, the effective capacitance Ceff
Which is equals to C itself, since C should not alter the effective capacitance.
So,
Or,
Or,
Or,
Or,
Since capacitance value cannot be negative, we neglect C=-2μF. Hence the equivalent capacitance of the infinite ladder is 4μF.
So, the value of capacitance that should be assigned with the terminating capacitor is 4 μF.
