Construct a quadrilateral ABCD in which AD = 3.5 cm, AB = 4.4 cm, BC = 4.7 cm, ∠A = 125° and ∠B = 120°.

Question

Construct a quadrilateral ABCD in which AD = 3.5 cm, AB = 4.4 cm, BC = 4.7 cm, ∠ A = 125° and ∠ B = 120°.

Philoid · Accepted Answer

Steps of construction:

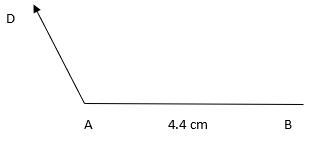

Step I: Draw AB = 4.4 cm.

Step II: Construct ∠BAD = 125°.

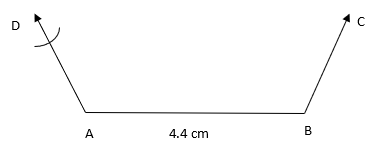

Step III: With A as the centre and radius 3.5 cm, cut off AD = 3.5 cm.

Step IV: Construct ∠ABC = 125°.

Step V: With B as the centre and radius 4.7 cm, cut off BC = 4.7 cm.

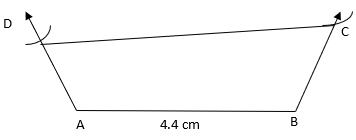

Step VI: Join CD.
