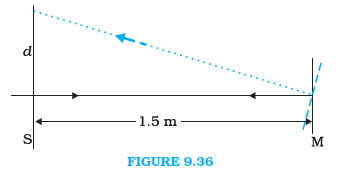

Light incident normally on a plane mirror attached to a galvanometer coil retraces backwards as shown in Fig. 9.36. A current in the coil produces a deflection of 3.50 of the mirror. What is the displacement of the reflected spot of light on a screen placed 1.5 m away?


Given:


Angle of deflection, θ = 3.5°


Distance of the screen from the mirror, D = 1.5 m


The reflected rays get deflected by an amount twice the angle of deflection i.e.,


2θ = 7.0°


The displacement (d) of the reflected spot of light on the screen is given as:


tan2θ = d/1.5


(Using trigonometric ratio)


d = 1.5 x tan7o


d= 0.184 m = 18.4 cm


Hence, the displacement of the reflected spot of light is 18.4 cm
